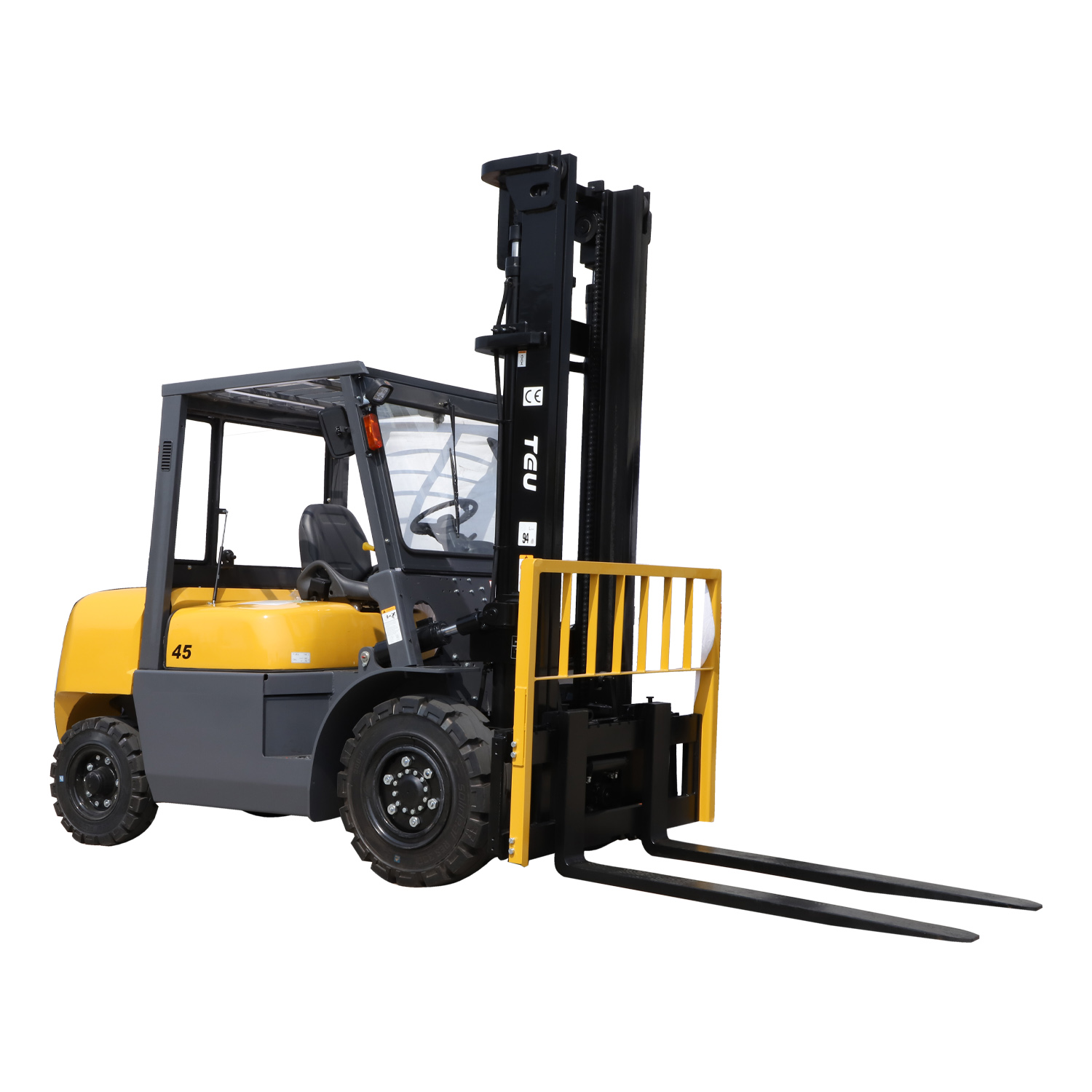

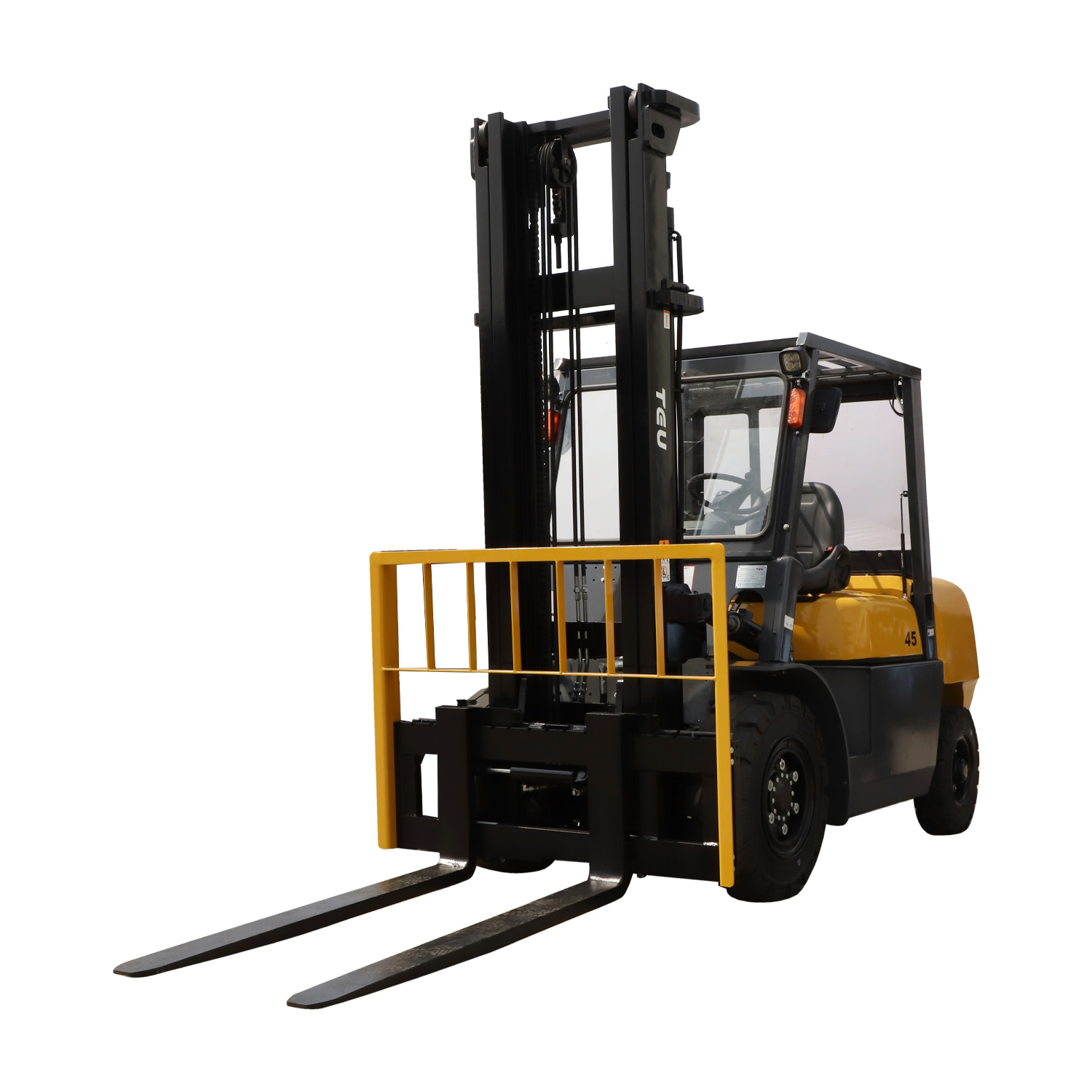

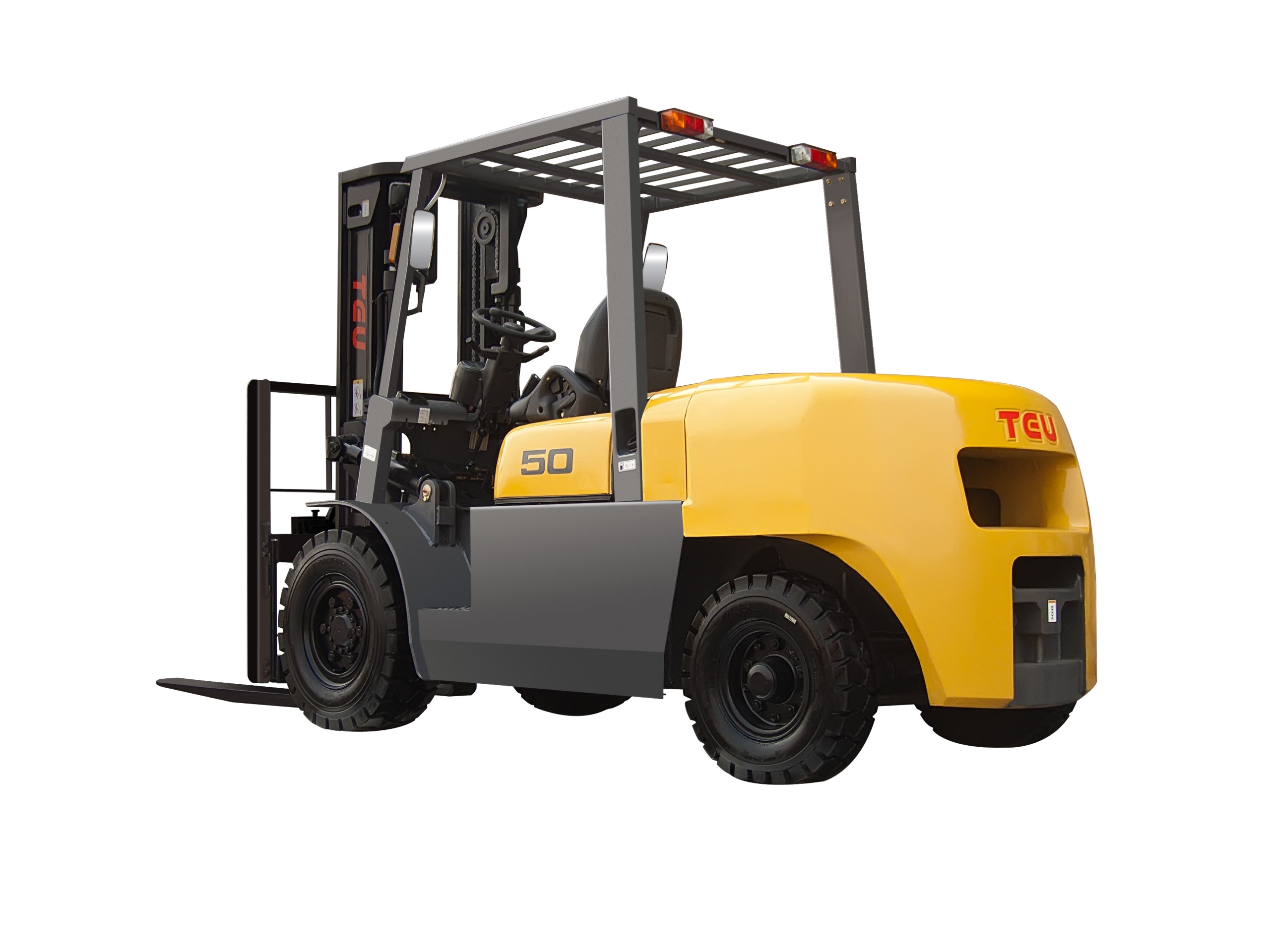

4.5-5t DIESEL

FD45T,FD50TS,FDTF

Drive types: Diesel
Load capacity: 4500-5000kg
Lift height: 3000-6000mm

contact us

1	Manufacturer				TEU
2	Model			Power shift T/M	FD45T	FD50TS	FD50TF
3	Load capacity			kg	4500	5000	5000
4	Load center			mm	600	500	600
5	Power unit				Diesel
6	Tire		Front		300-15-18PR
			Rear		7.00-12-12PR
7	Max.lifting height			mm	3000
8	Fork size L ×W ×T			mm	1220x150x50	1070x150x50	1220x150x60
9	Tilt angle Forward/backward			deg	6/12
10	Overall length(without fork)			mm	3183		3422
11	Total width			mm	1485
12	Mast height（fork lowering）			mm	2300		2360
13	Height of head guard			mm	2420 (standard); 2270 (container type in optional)
14	Weight			kg	7483		7530
15	Speed	Travelling	Full load	km/h	17
16		Lifting	Full load	mm/s	420		440
17		Lowering	Full load	mm/s	500		525
18	Gradeabillty at 1.6km/h	Full load/No load		%	15
19	Engine	Model			XINCHAI 4D35ZG31	MITSUBISHI S6S	MITSUBISHI S6S
		Rated power		KW/rpm	60/2200	52/2300	52/2300
		Rated torque		N·m/rpm	300/160-1800	248/1700	248/1700
		Number of cylinders			4	6	6
		Displacement		L	3.5	4.996	4.996
20	Fuel tank capacity			L	80
21	Transmission	Shift stage(front/rear-type)		Power shift T/M	1-1Power shift T/M		1-1Power shift T/M
