FRD SERIES

FRD2.5-3.5T

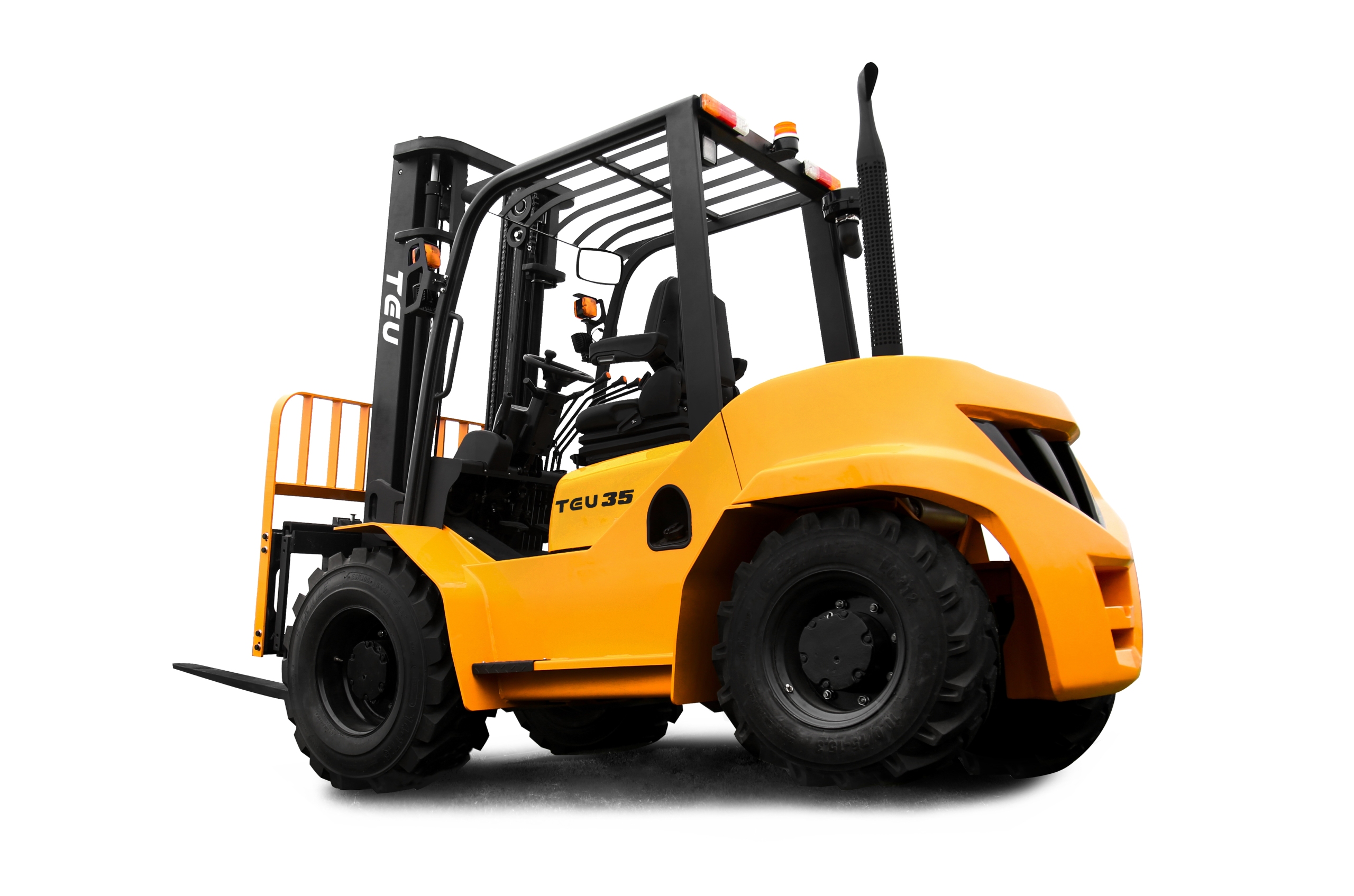

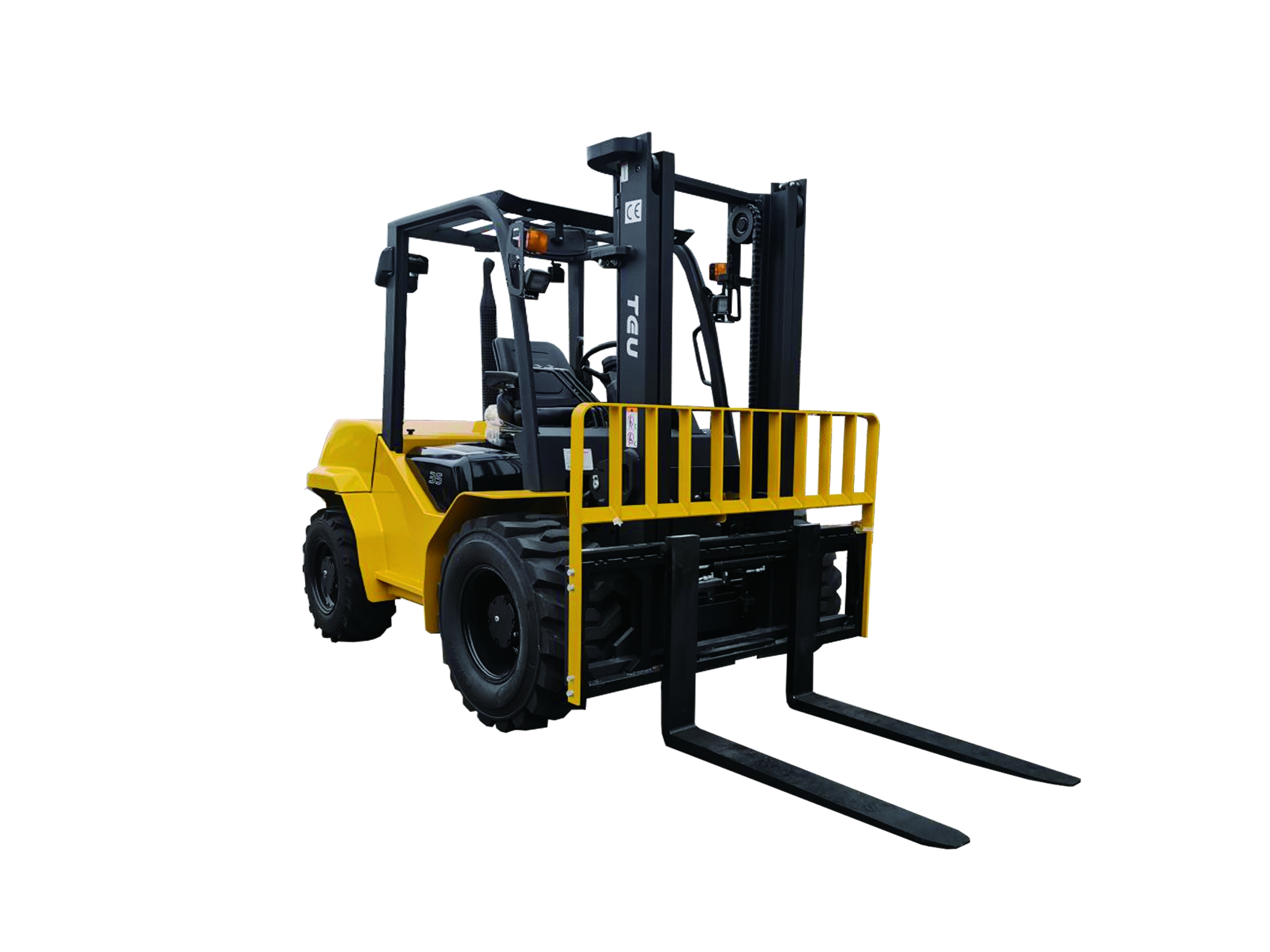

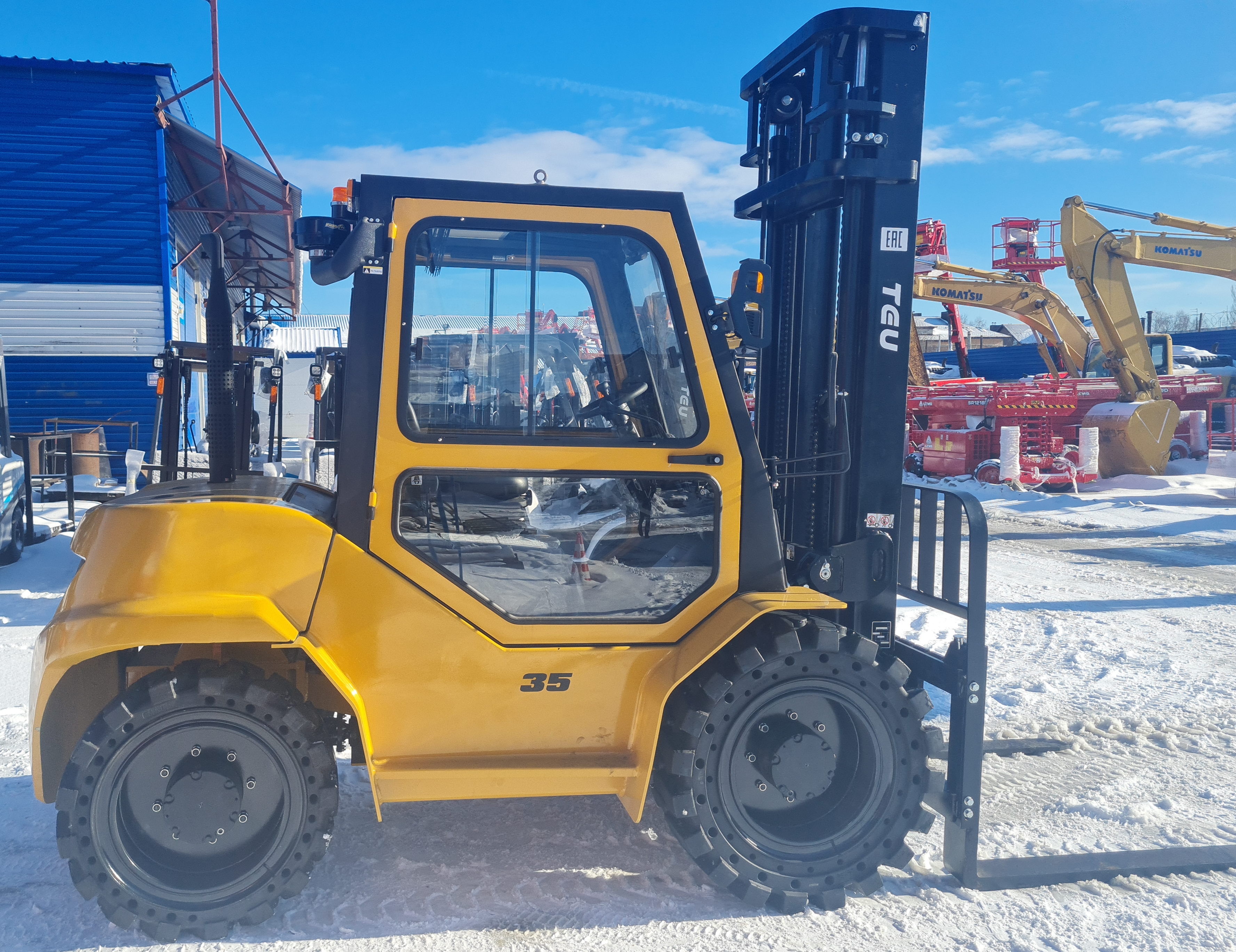

Rough terrain forklift

2WD 4WD

Drive types: Diesel
Load capacity: 2500-3500kg
Lift height: 3000-6500mm

contact us

1	Manufacturer				TEU
2	Model				FR4D25	FR4D35
3	Power Type				Diesel	Diesel
4	Rated capacity			Kg	2500	3500
5	Load centre			mm	500	500
6	Lifting height			mm	3000	3000
7	Fork size		L×W×T	mm	1070×125×45	1070×125×45
8	Mast tilt angle		Front/Rear	Deg	10/12	10/12
9	Overall dimensions		Length to face of fork(without fork)	mm	3070	3085
			Overall width	mm	1450	1600
			Mast lowered height	mm	2230	2325
10	Speed		Travel（Laden/Unladen）	Km/h	19/20	18/19
			Lifting（Laden）	mm/sec	480	480
			Lowering（Laden）	mm/sec	440	440
11	Max. Gradeability(Laden)			%	50	45
12	Tyre		Front		12-16.5-12PR	14-17.5-14PR
12	Tyre		Rear		10.0/75-15.3	10.0/75-15.3
13	Self weight			kg	4850	5460
14	Battery	Voltage/Capacity		V/Ah	12/90	12/90
15	Engine	Model			4TNE98-BQFLC	4TNE98-BQFLC
16		Manufacture			YANMAR (Euro III emissions)	YANMAR (Euro III emissions)
17		Rated output/r.p.m		Kw	42.1/2300	42.1/2300
18		Rated torque/r.p.m		N.m	186-206/1700	186-206/1700
19		No. of cylinder			4	4
20		Bore x Stroke		mm	98×110	98×110
21		Displacement		L	3.318	3.318
22		Fuel tank capacity		L	70	70
23		Type			Powershift	Powershift
24	Operating pressure			Mpa	20	20
