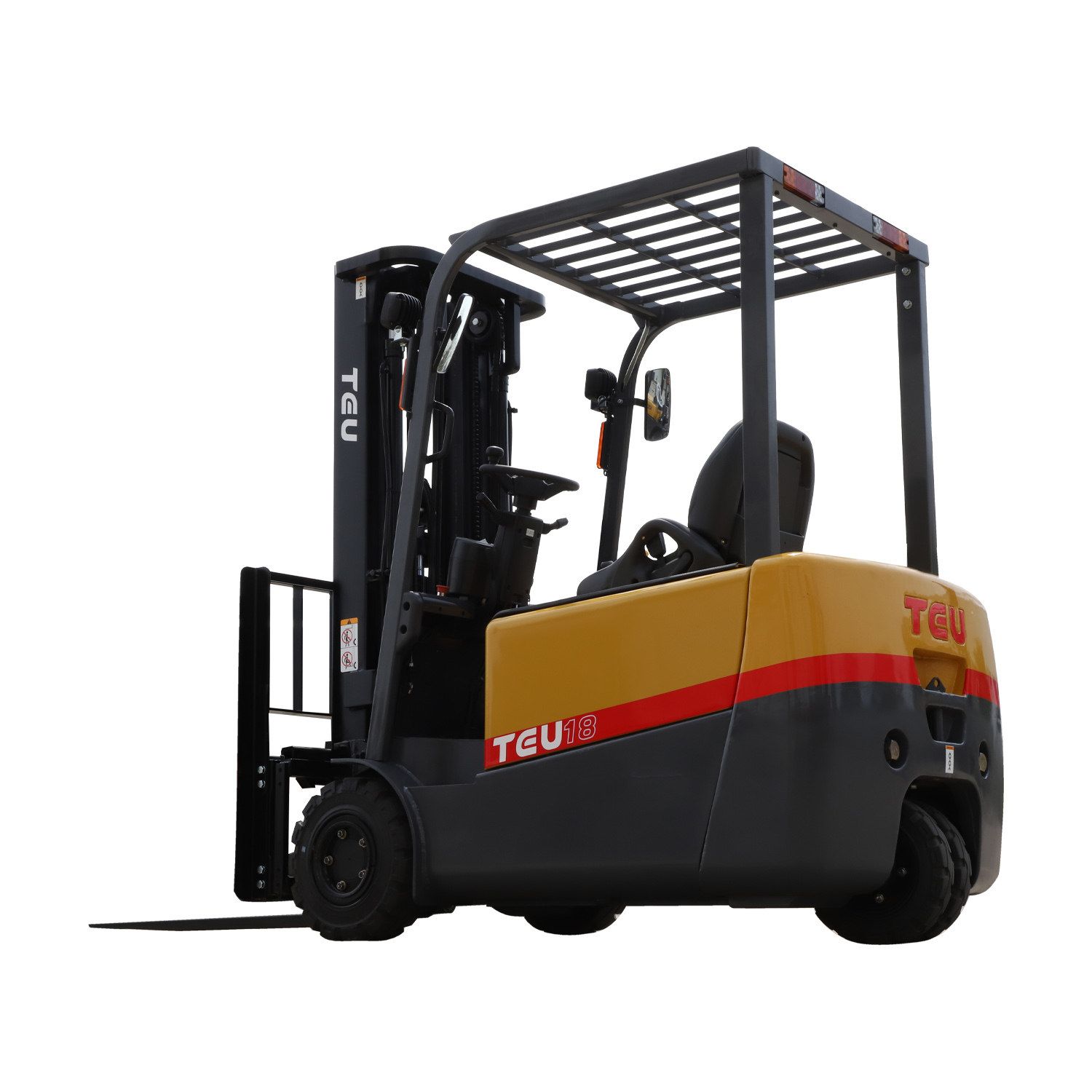

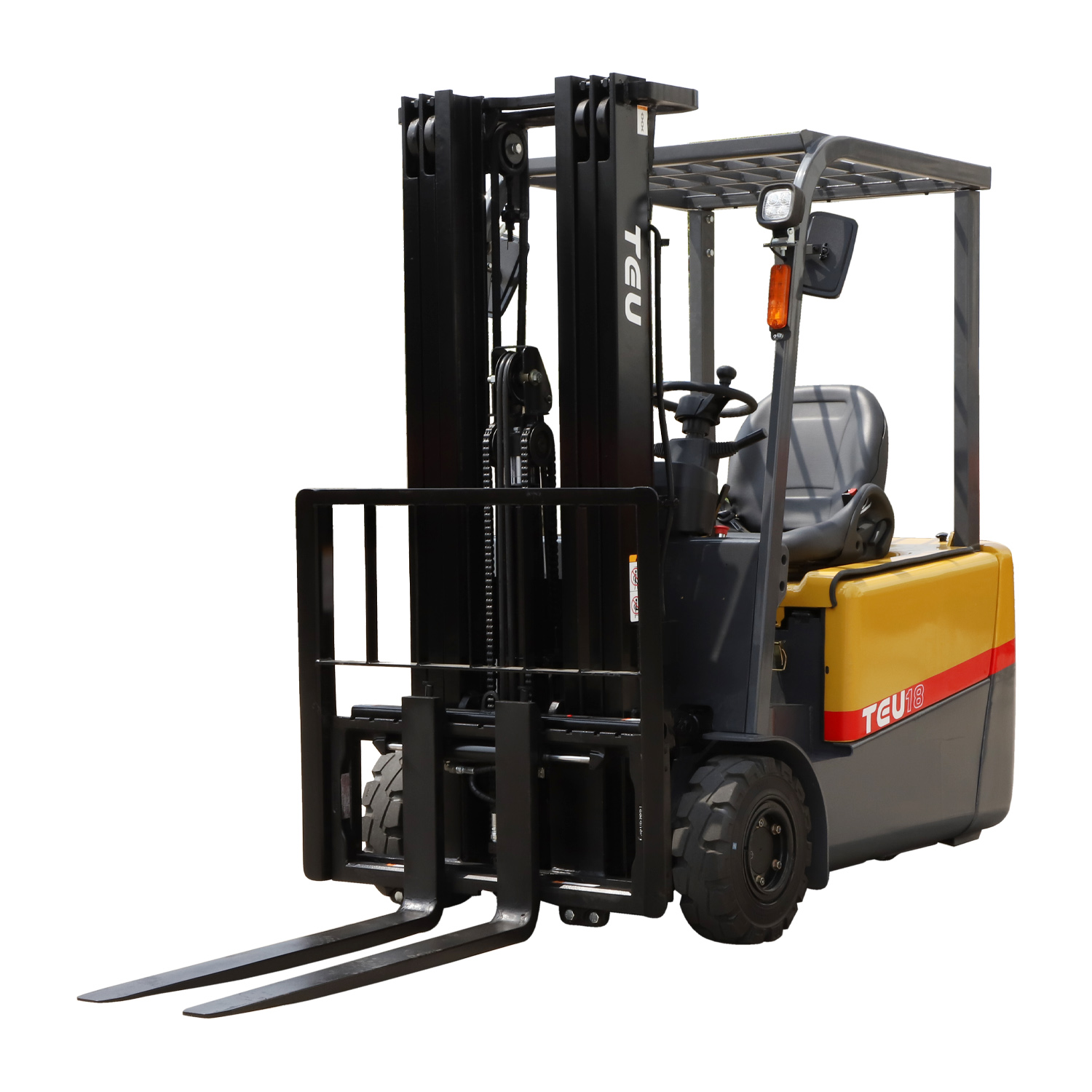

FTB SERIES lead-acid battery

FTB15-20

Drive types: Lead-Acid Battery
Load capacity: 1500-4000kg
Lift height: 3000-7500mm

contact us

1	Manufacturer				TEU
2	Model				FTB15	FTB18	FTB20
3	Load capacity			kg	1500	1800	2000
4	Load center			mm	500
5	Power unit				Lead-acid Battery
	Tire		Front		18x7-8	18x7-8	200/50-10
			Rear		15x4.5-8	15x4.5-8	140/55-9
8	Max.lifting height			mm	3000	3000	3000
9	Fork size L ×W ×T			mm	920X100X35	920X100X35	1070X122X40
10	Tilt angle Forward/backward			deg	5º/6.5º
11	Overall length(without fork)			mm	1791	1901	1966
12	Total width			mm	1054	1054	1100
13	Mast height（fork lowering）			mm	1970	1970	1970
15	Height of head guard			mm	4020	4020	4030
16	Weight（with standard battery）			kg	2960	3080	3450
17	Speed	Travelling	Full load	km/h	15	15	14.5
18		Lifting	Full load	mm/s	380	350	320
19	Gradeabillty		Full load	%	20	20	20
20	Battery	Voltage/capacity		V-AH/5hr	48V-350	48V-450	48V-450
20	Battery	Weight(with battery box)		Kg	650-700	820-870	820-870
21	Electric motors	AC Drive motor		KW/60min	4.75	4.75	4.75
21	Electric motors	AC Hydraulic motor		KW/15min	10	10	12
22	Control type				Travelling AC; Lifting AC
23	Operation pressure			kg/cm2	160	175	175
